BMS – BUS CABLES KNX/EIB
BUS KNX/EIB IHSTH LSZH
APPLICATION
BUS cable, shielded, suitable for KNX/EIB (European Installation Bus) Building Management Systems (BMS).
KNX systems, formerly known as EIB, allow the operation and control of heating, lighting, air
condition and many other applications.
KNX systems, formerly known as EIB, allow the operation and control of heating, lighting, air
condition and many other applications.
SPECIAL FEATURES
IEC 60332-1, IEC 60332-3-24, EN 50363-0:2011,
EN 6034-2:2006, EN 60754-1:2005,
EN 60754-2:2015, EN 50090-2-2:2008
Flame retardant CEI 20-35 / EN 60332-1
EN 50575 : 2014 + A1 : 2016
REMARKS
Conform to RoHS directive
Conform to Low-Voltage Directive (LDV) 2014/35/EU
Conform to Low-Voltage Directive (LDV) 2014/35/EU

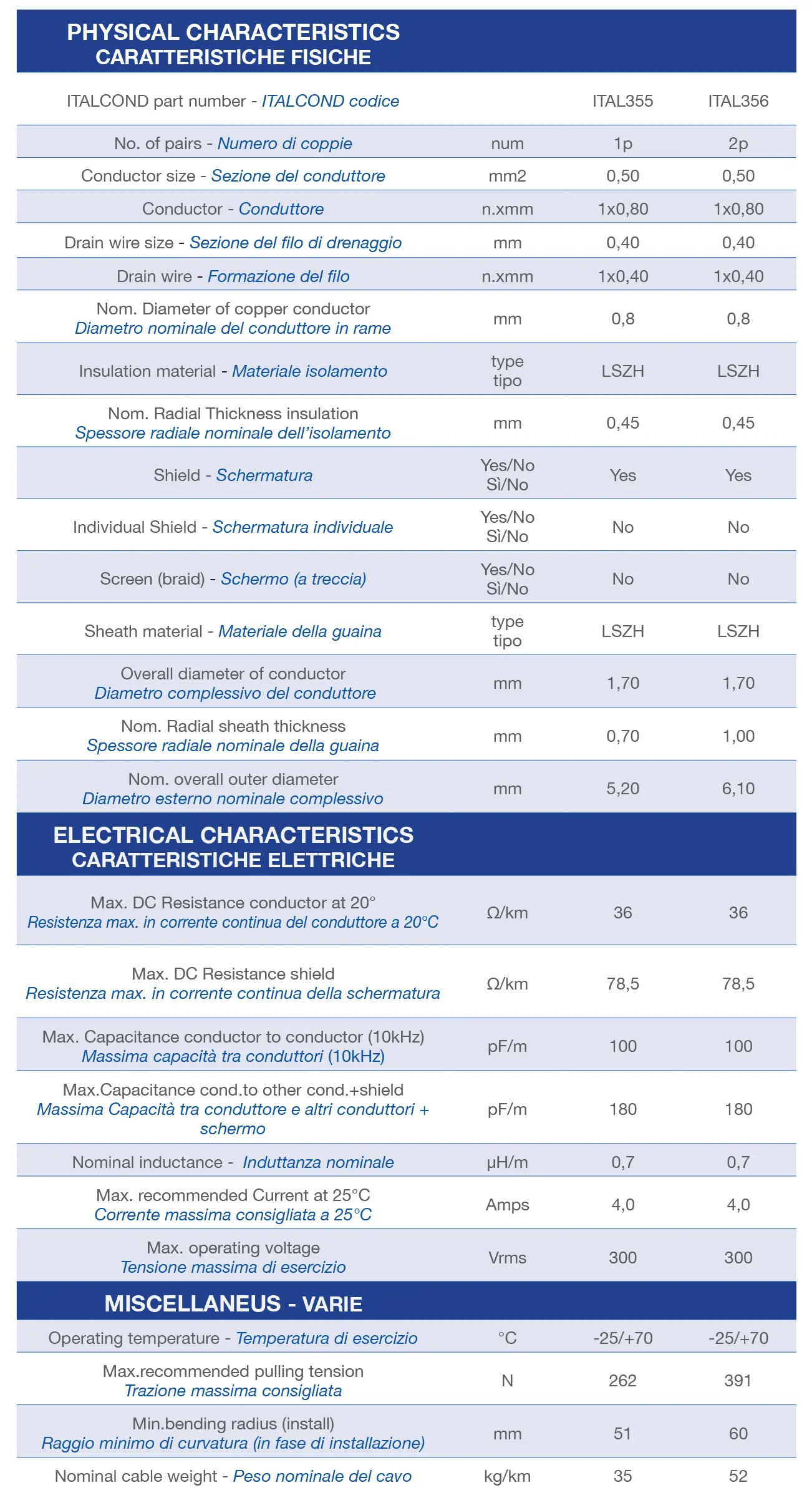

TECHNICAL FEATURES
Conductor
Solid bare copper wire
Insulation
Low Smoke Zero Halogen (LSZH)
Core identification
black-red / yellow-white
Drain wire
Tinned copper
Shield
Aluminium/Polyester 100% coverage
Sheath material
Low Smoke Zero Halogen (LSZH), Green (RAL 6018)
Other version
IYSTY PVC
CPR (DoP) – EU 305/11
PVC
SYSTEM AVCP 1+
Cca
DOWNLOAD
SYSTEM 3
Dca
DOWNLOAD
SYSTEM 3
Eca
DOWNLOAD
SYSTEM 4
Fca
DOWNLOAD
LSZH
SYSTEM AVCP 1+
B2ca
DOWNLOAD
SYSTEM AVCP 1+
Cca
DOWNLOAD
SYSTEM 3
Dca
DOWNLOAD
SYSTEM 3
Eca
DOWNLOAD
SYSTEM 4
Fca
DOWNLOAD
