BMS – SIGNAL, CONTROL CABLES

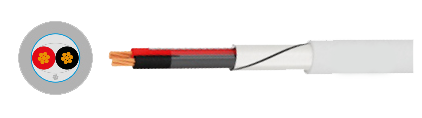

SIGNAL, CONTROL CABLES OVERALL SHIELDED
APPLICATION
Multiconductor overall shielded cable, suitable for sound, control, instrumentation and Building Management Systems (BMS).
SPECIAL FEATURES
Flame retardant CEI 20-35 / EN 60332-1
Lead Free CEI 20-52
Lead Free CEI 20-52
REMARKS
Conform to RoHS directive
Conform to Low-Voltage Directive (LDV) 2014/35/EU
Conform to Low-Voltage Directive (LDV) 2014/35/EU

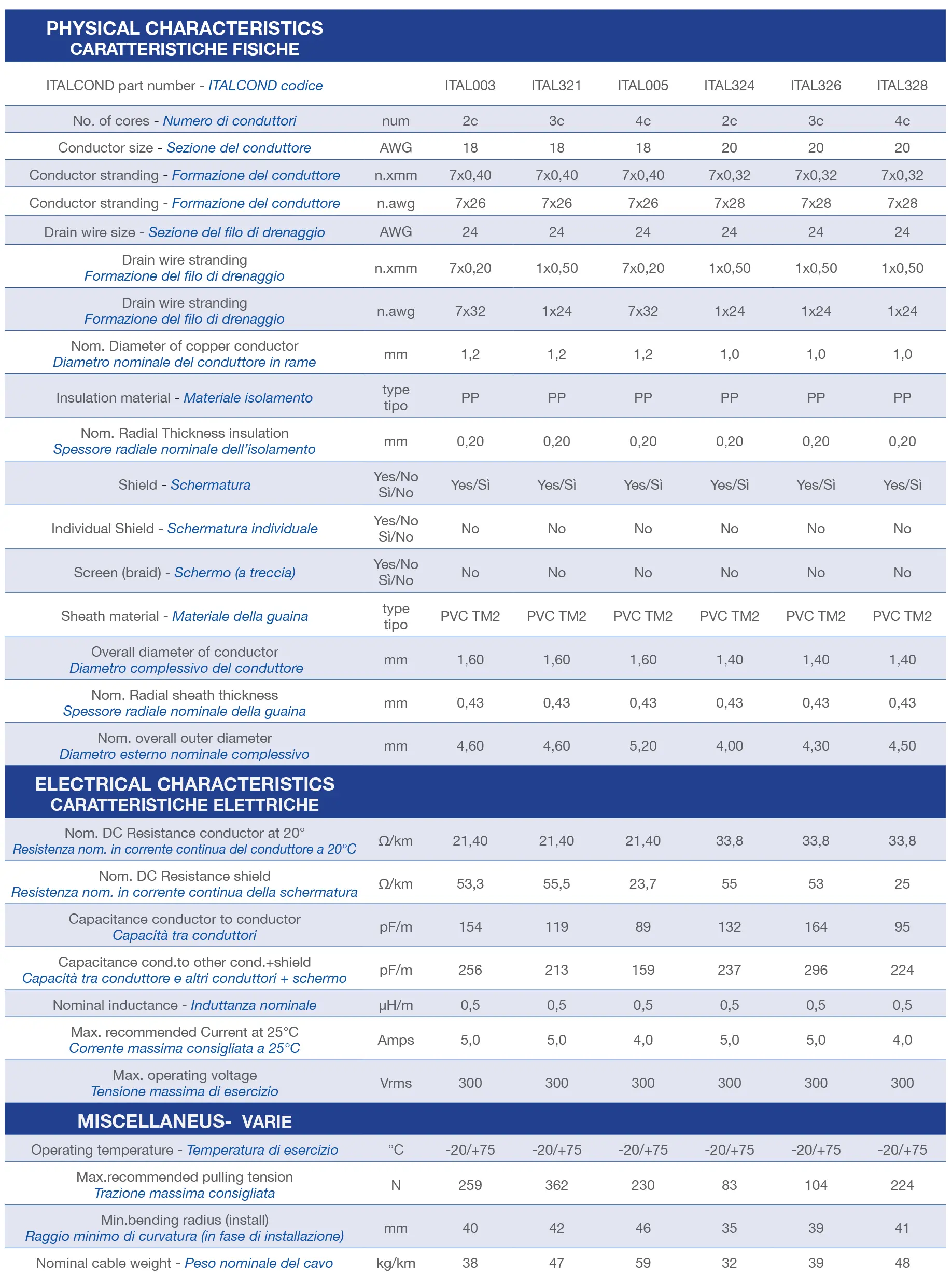

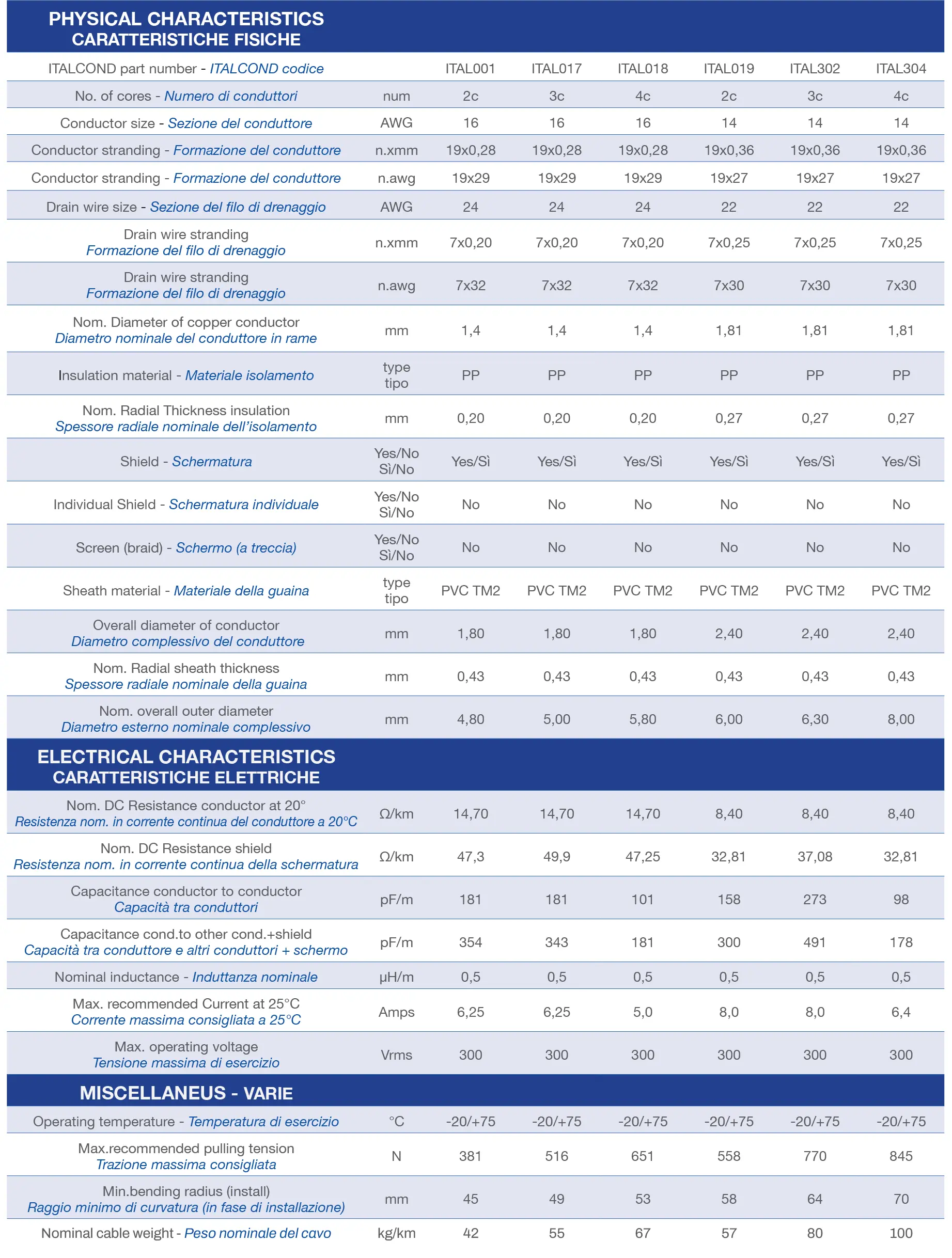

TECHNICAL FEATURES
Conductor class
Flexible bare copper wire
Insulation
PP Polypropylene
Drain wire
Tinned copper
Shield
Aluminium/Polyester 100% coverage
Sheath material
PVC (quality TM2) Grey
Core colours identification
black – red – white – green
CPR (DoP) – EU 305/11
CPR on request - Contact us

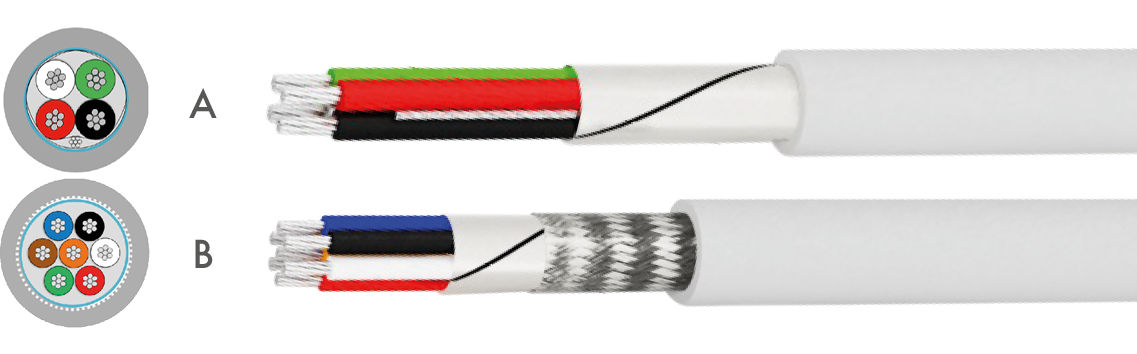

SIGNAL, CONTROL CABLES OVERALL SHIELDED AND SCREENED
APPLICATION
Multiconductor overall shielded cables, suitable for sound, control, instrumentation and Building Management Systems (BMS).
SPECIAL FEATURES
Flame retardant CEI 20-35 / EN 60332-1
Lead Free CEI 20-52
Lead Free CEI 20-52
REMARKS
Conform to RoHS directive
Conform to Low-Voltage Directive (LDV) 2014/35/EU
Conform to Low-Voltage Directive (LDV) 2014/35/EU

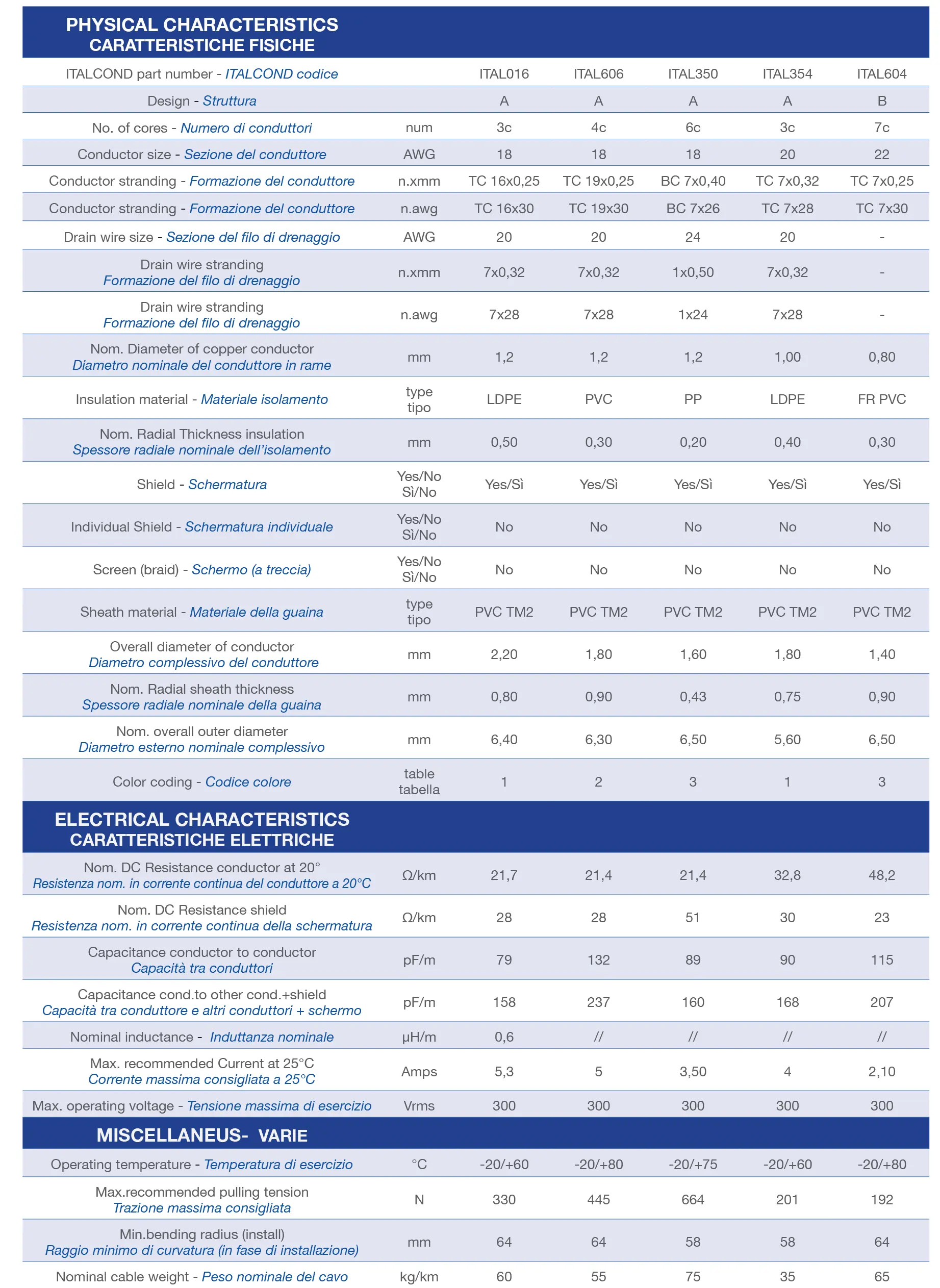

TECHNICAL FEATURES
Conductor
Flexible (CuSn) tinned copper wire or (Cu) bare copper wire
Insulation
LDPE Polyethylene or PVC or PP Polypropylene
Drain wire
Tinned copper
Shield
Aluminium/Polyester 100% coverage
Screening
Tinned copper braid coverage > 70%
Sheath material
PVC (quality TM2) Grey
Core identification
table(1): black – red – clear
table(2): black – red – green – white
table(3): black – white – red – green – brown – blue – orange
CPR (DoP) – EU 305/11
CPR on request - Contact us

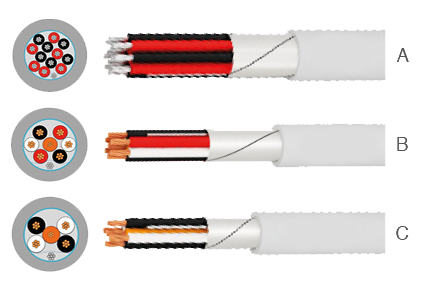

SIGNAL, CONTROL CABLES OVERALL SHIELDED
APPLICATION
Multiconductor overall shielded cables, suitable for sound, control, instrumentation and Building Management Systems (BMS).
SPECIAL FEATURES
Flame retardant CEI 20-35 / EN 60332-1
Lead Free CEI 20-52
Lead Free CEI 20-52
REMARKS
Conform to RoHS directive
Conform to Low-Voltage Directive (LDV) 2014/35/EU
Conform to Low-Voltage Directive (LDV) 2014/35/EU

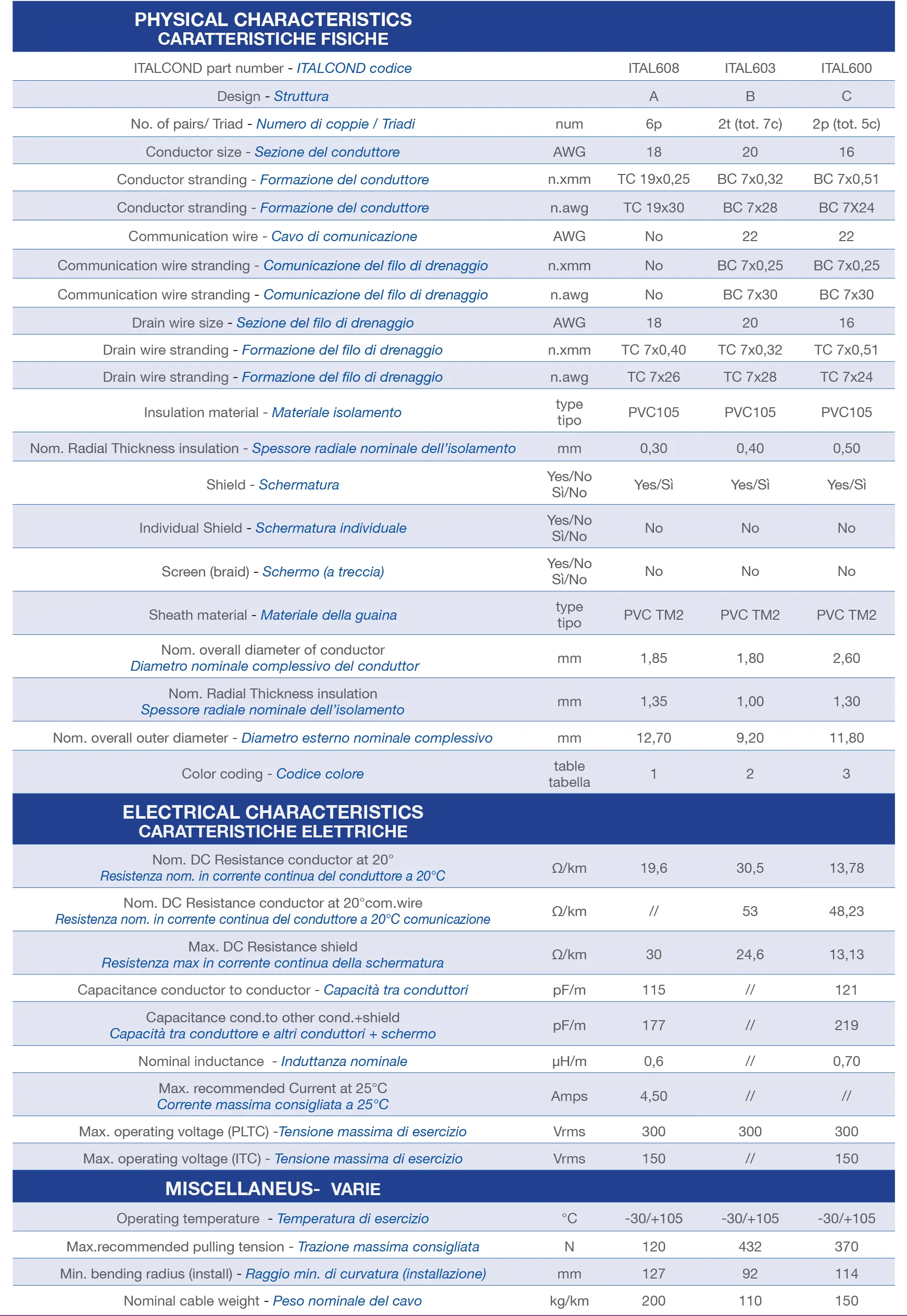

TECHNICAL FEATURES
Conductor
Flexible (TC) tinned copper wire or (BC) bare copper wire
Insulation
PVC (quality 105°C)
Drain wire
Tinned copper
Shield
Aluminium/Polyester 100% coverage
Sheath material
Thermoplastic material based PVC (quality TM2) Grey
Core identification
table(1): red – black (numbered pairs)
table(2): black – white – red (numbered in groups of three) + orange communication wire
table(3): black – white (numbered pairs) + orange communication wire
