CIVIL AND INDUSTRIAL CABLES

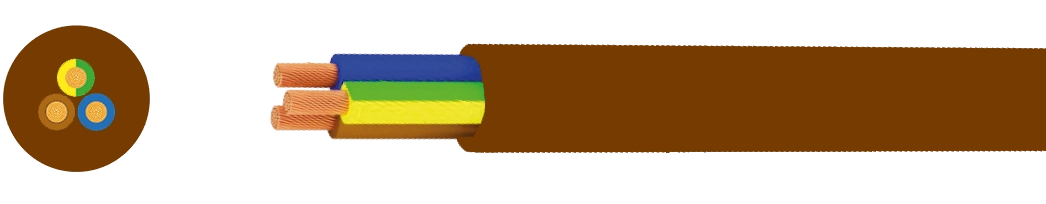

FS18OR18
APPLICATION
Power, signalling and control multi-core cable, PVC insulated S 18 quality, with PVC sheath R18 quality, with special fire reaction characteristics. Suitable for fixed laying or temporary installation in fire risk areas. For indoor installation in dry or wet places.
SPECIAL FEATURES
EN 13501 – 6:2014, EN 50575:2014 + A1:2016, EN 13501-6:2014
CEI U/NEL 35720 + A1: 2022, CEI EN 60332-1-2
REMARKS
Conform to RoHS directive
Conform to Low-Voltage Directive (LDV) 2014/35/EU
TECHNICAL FEATURES
Operating temperature
-15° ÷ +70°
Rated voltage
300/500 V or 450/750 V
Test Voltage
2000 V for 300/500 V
Conductor Class
Plain copper flexible wire, class 5
Insulation
PVC compound (quality S18)
Sheath material
PVC compound (quality R18), brown
Min. bending radius
4 x cable Ø
