CIVIL AND INDUSTRIAL CABLES

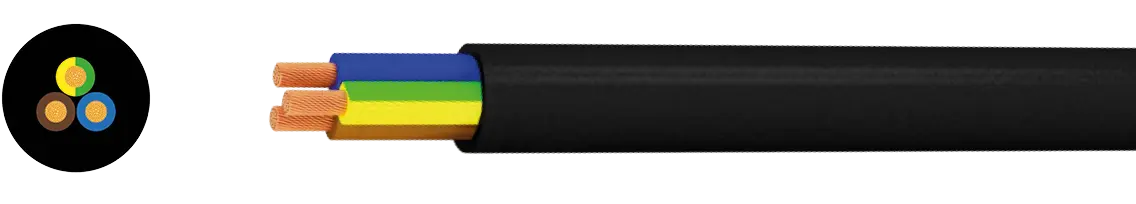

H05Z1Z1-F LSZH
halogen free
APPLICATION
Halogen free flexible multicore cable for connecting small electrical appliances, suitable for kitchens, offices for light duties, for light portable appliances (eg. radio sets, table and standard lamps, office machines).
Internally in equipment.
Internally in equipment.
SPECIAL FEATURES
IEC 60332-1-2, EN 50525-1, EN 50267-2-2, EN 50267-2-1
REMARKS
REMARKS – ANNOTAZIONI
Conform to RoHS directive
Conform to Low-Voltage Directive (LDV) 2014/35/EU
Conform to RoHS directive
Conform to Low-Voltage Directive (LDV) 2014/35/EU

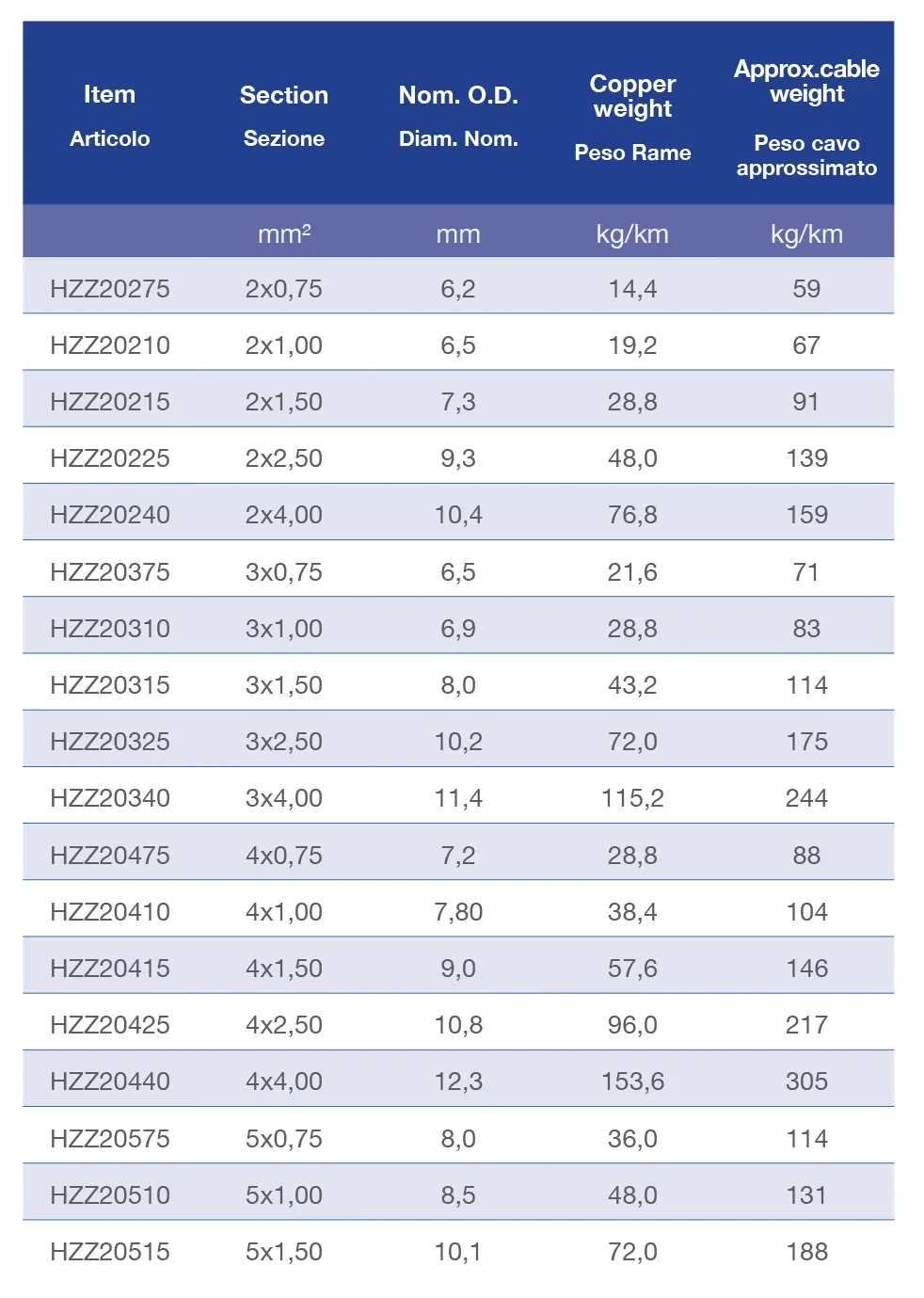

TECHNICAL FEATURES
Operating temperature
-10°C ÷ +70°C
Rated voltage
450/750 V
Test Voltage
2000 V
Conductor Class
Bare Cu Class 5 DIN VDE 0295 / IEC 60228
Insulation
PVC (quality TI6)
Core identification
CEI UNEL 00722 / HD 308 / VDE-0293
Sheath material
PVC (Quality TM7) White, black, other colours on request
Min. bending radius
Fixed 3 x cable Ø / mobile use 4 x cable Ø
