DATA TRANSMISSION SIGNAL AND CONTROL CABLES

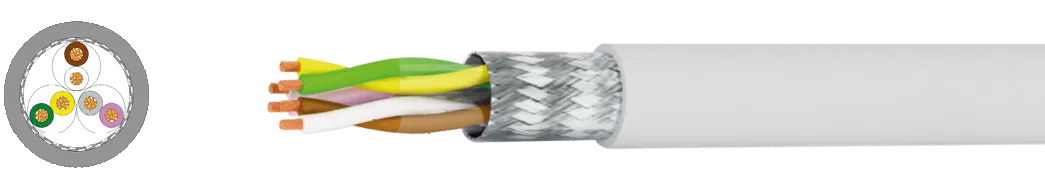

LIYCY PAAR
twisted pair (overall screened)
APPLICATION
Twisted pair screened data transmission cable, control and connecting cable mainly for transmission of analog and digital signals in process controlled facilities in measurement and control technology. For fixed laying and flexible applications. Suitable for use in dry and humid environments.
SPECIAL FEATURES
IEC 60332-1, EN50265 -2-1, IEC 60332-3C,
HD 405.3, IEC 70754-1, EN 50267-2-1,
IEC 61034, EN 50268-2 LT > 60%
EN 50575 : 2014 + A1 : 2016
REMARKS
Conform to RoHS directive
Conform to Low-Voltage Directive (LDV) 2014/35/EU
Conform to Low-Voltage Directive (LDV) 2014/35/EU
TECHNICAL FEATURES
Operating temperature
-30°C ÷ +80°C
Rated voltage
0,14 mm2 250 V / ≥ 0,25 mm2 300/500V
Test Voltage
2000 V
Conductor class
Bare Copper Class 5 DIN VDE 0812 / IEC 60228
Insulation
PVC (Quality TI2)
Core identification
DIN 47100
Bunching
Cores twisted in pairs and pairs twisted together
Screening
Polyester tape, CuSn braiding >80% coverage
Sheath material
PVC (Quality TM2) Grey (RAL 7001)
Min. bending radius
Fixed installation 6 x cable Ø / mobile use 15 x cable Ø
Other versions
LiHCH PAAR (LSZH) Low Smoke Zero Halogen
CPR (DoP) – EU 305/11
LIYCY PAAR
SYSTEM AVCP 1+
Cca
DOWNLOAD
SYSTEM 3
Dca
DOWNLOAD
SYSTEM 3
Eca
DOWNLOAD
SYSTEM 4
Fca
DOWNLOAD
Additional parameter
s3,d0,a3
LIHCH PAAR
SYSTEM AVCP 1+
B2ca
DOWNLOAD
SYSTEM AVCP 1+
Cca
DOWNLOAD
SYSTEM 3
Dca
DOWNLOAD
SYSTEM 3
Eca
DOWNLOAD
SYSTEM 4
Fca
DOWNLOAD
Additional parameter
s1a,d0,a1
