FIRE FIGHTING CABLES

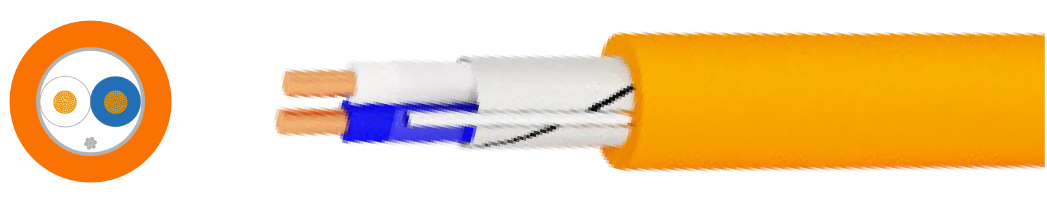

ATOXTEL FIRE RESISTANT COMMUNICATION CABLE
low smoke, halogen-free
APPLICATION
Fire performance cable, for voice and data communication.
Designed to maintain circuit integrity under fire conditions, according to IEC-EN fire test standards.
Suitable for 300V.
Designed to maintain circuit integrity under fire conditions, according to IEC-EN fire test standards.
Suitable for 300V.
SPECIAL FEATURES
EN 50267-2-3, EN 61034-2, IEC 60332-3-24, IEC 60332-1-2 IEC 60331-11-21, NBN 713-020 ADD.3
REMARKS
Conform to RoHS directive
Conform to Low-Voltage Directive (LDV) 2014/35/EU
Conform to Low-Voltage Directive (LDV) 2014/35/EU
TECHNICAL FEATURES
Operating temperature
-40°C ÷ +70°C
Rated voltage
300/500V
Test voltage
2000 V
Conductor class
Bare copper Class 1 DIN VDE 0812 /IEC 60228
Insulation
High performance Silicone Rubber
Core identification
White and Blue numered
Pairs
Core twisted with polyester tape
Shield
Alum./Polyester tape, drain wire CuSn and Polyester tape
Sheath material
LSZH (Quality M1) Orange Ral 2004
CPR (DoP) – EU 305/11
NOT APPLICABLE
