FIRE FIGHTING CABLES
FIRE ALARM CABLES 105°C, SHIELDED
APPLICATION
Fire detection alarm cable, shielded, suitable for fire alarm systems, smoke alarms, voice
communications and berglar alarms.
Manufactured with flame retardant insulation up to 105°C.
communications and berglar alarms.
Manufactured with flame retardant insulation up to 105°C.
SPECIAL FEATURES
EN 60332-1-2, EN 50399, EN 61034-2, EN 50267-2-3
REMARKS
Conform to RoHS directive
Conform to Low-Voltage Directive (LDV) 2014/35/EU
Conform to Low-Voltage Directive (LDV) 2014/35/EU

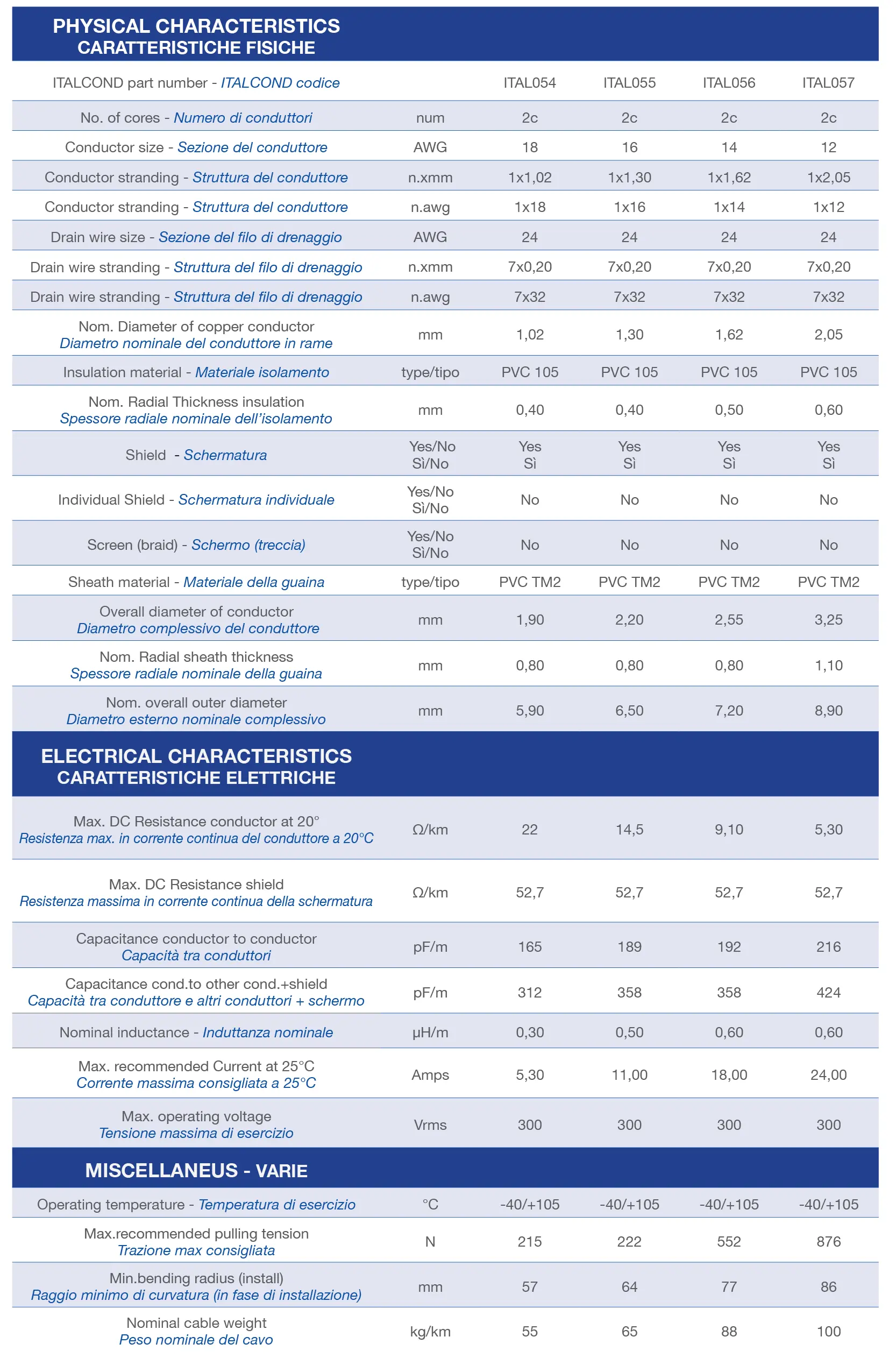

TECHNICAL FEATURES
Operating temperature
-40°C ÷ +105°C
Conductor
Solid bare copper wire AWG
Insulation
PVC 105°C
Core identification
black, red
Drain wire
Tinned copper
Shield
Aluminium/Polyester 100% coverage
Sheath material
PVC (quality TM2) Red
