FIRE FIGHTING CABLES
ITALFIRE BS 6387 CWZ EN 50200 PH120 LSZH
fire resistant LPCB approved
APPLICATION
Fire performance power cable, suitable for fire alarm systems and emergency lighting, designed to maintain circuit integrity under fire conditions according to BS6387 Categories C, W E Z: up to 950° for 3 hours.
SPECIAL FEATURES
EN 60332-1-2, IEC 60331-21 FE 180, EN 50200 PH 120 ANNEX-E,
BS 6387 CWZ, EN 61034-2, EN 60754-1,
EN 60754-2
BS 6387 CWZ, EN 61034-2, EN 60754-1,
EN 60754-2
REMARKS
Conform to RoHS directive
Conform to Low-Voltage Directive (LDV) 2014/35/EU
Conform to Low-Voltage Directive (LDV) 2014/35/EU

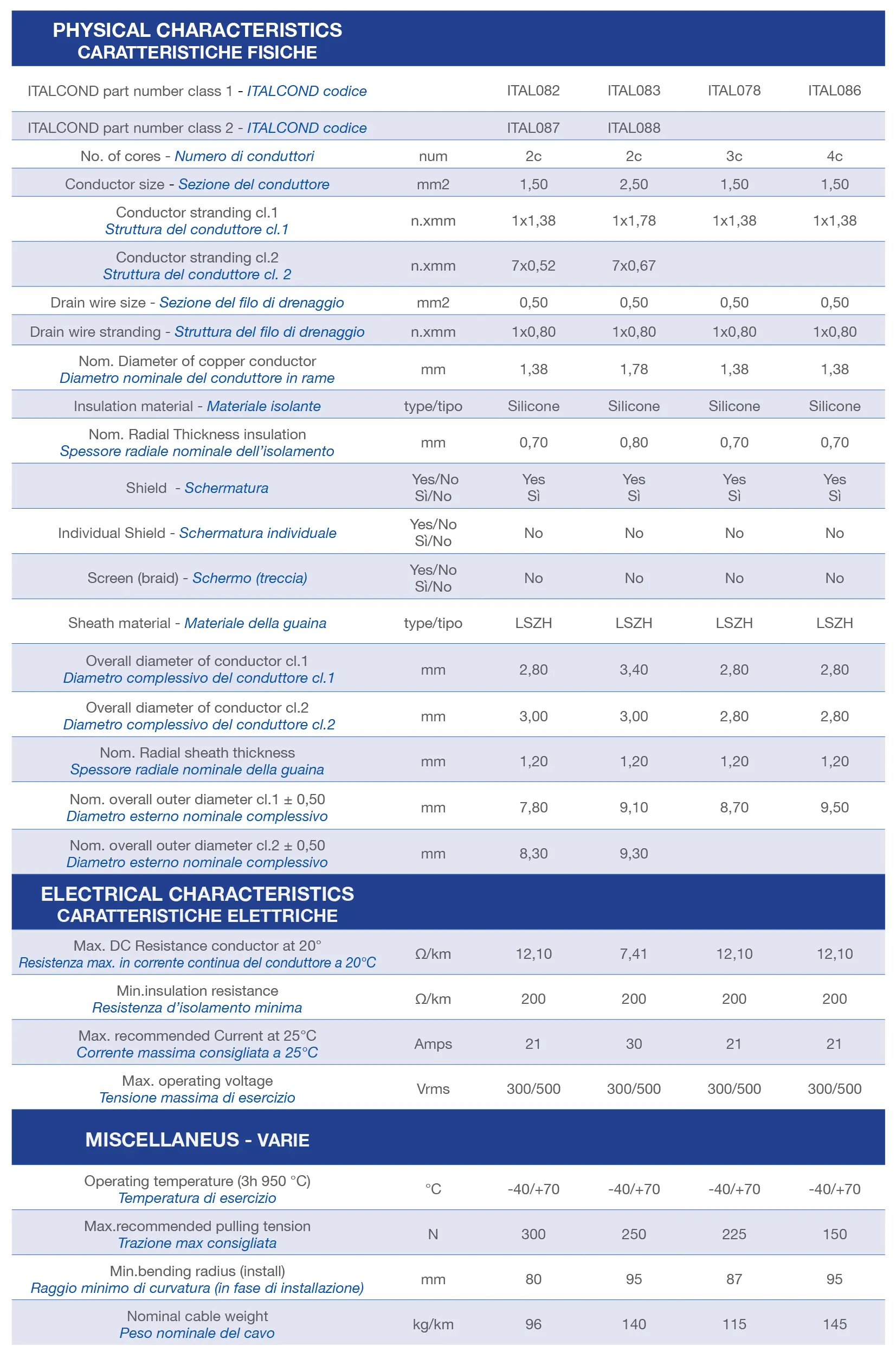

TECHNICAL FEATURES
Operating temperature
-40°C ÷ +70°C

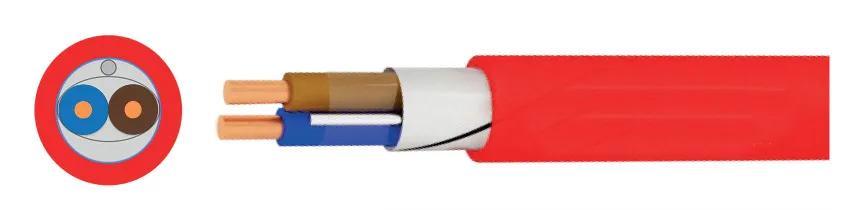

Conductor
Bare Cu Class 1 or 2 DIN VDE 0812 / IEC 60228
Insulation
High performance Silicone Rubber
Core identification
blue, brown, black, grey
Drain wire
Tinned copper
Shield
Aluminium/Polyester 115% coverage
Sheath material
LSZH Colour Red or White
FIRE TEST to BS6387
Fire test category C= 950°C / 3 h | BS 6387 D2 | Test Applied C
Resistance to fire with water | BS 6387 D3 | Test Applied 30 min
Cat. W 650°C for 30 mins 15 min of water | BS 6387 D3 | Test Applied W
Fire resistance with mechanical shock (1 every 30 s) | BS 6387 D4 | Test Applied 15 min
Category X at 650°; Y at 750°; Z at 950° | BS 6387 D4 | Test Applied Z
RESISTANCE to FIRE CEI EN 50200
Category (PH120) temp. 842°C | EN 50200 | Test Applied PH120
Fire resistance with mechanical shock (1 every 5 min) | EN 50200 | Test Applied OK
Resistance to fire with water and shock (1 every 5 m)| EN 50200-E | Test Applied 30 min
Category (temp 842° for 30min, 15 water)| EN 50200-E | Test Applied OK
CPR (DoP) – EU 305/11
NOT APPLICABLE
