INDUSTRIAL SIGNAL AND CONTROL CABLES

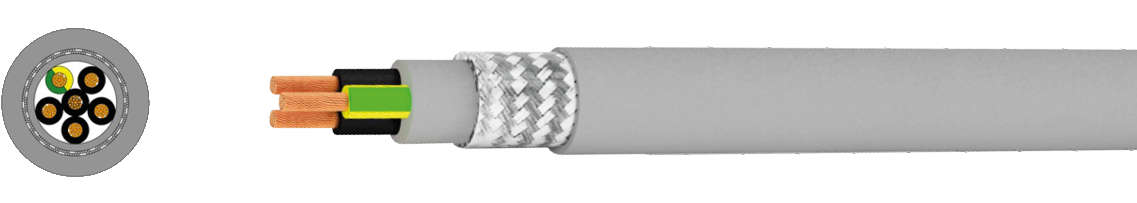

YSLY-CY
double sheath screened
APPLICATION
Screened double sheath cables, suitable for fixed and mobile installations. Used for signal and control connections against electromagnetic interference. Recommended for indoor use.
SPECIAL FEATURES
EN 50525-2-51: 2012-01
REMARKS
Conform to RoHS directive
Conform to Low-Voltage Directive (LDV) 2014/35/EU
Conform to Low-Voltage Directive (LDV) 2014/35/EU
TECHNICAL FEATURES
Operating temperature
-10°C ÷ +70°C
Rated voltage
300/500 V
Test Voltage
2000 V
Conductor Class
Bare Cu Class 5 DIN VDE 0812 / IEC 60228
Insulation
PVC (Quality TI2)
Core identification
CEI UNEL 00722 / HD 308 / VDE-0293
Internal sheath material
PVC (Quality TM2) Grey (RAL 7001)
Screening
Tinned copper braid coverage > 80%
Sheath material
PVC (Quality TM2) Grey (RAL 7001)
Min. bending radius
Fixed installation 6 x cable Ø / mobile use 15 x cable Ø
Other versions
HSLH-CH Low Smoke Zero Halogen (LSZH)
