MUSICAL INSTRUMENT CABLES
Audio – Balanced microphone cables
APPLICATION
Extra flexible balanced microphone cables, for audio wiring applications and recording studios. Recommended for high performance sound reproduction, excellent screening efficiency and noise protection.
Suitable for analog and high fidelity digital connections, with low capacitance and low cable- loss characteristics.
Suitable for analog and high fidelity digital connections, with low capacitance and low cable- loss characteristics.
SPECIAL FEATURES
ITAL535M: for analog and high quality digital connections, unbalance microphone cables
ITAL675M/995M/805M: balanced microphone connections
ITAL818M: universal AES/EBU digital audio connections and DMX signal control transmission
EN 50170/VDE 0482-332-1-2/IEC 60332-1-2
ITAL675M/995M/805M: balanced microphone connections
ITAL818M: universal AES/EBU digital audio connections and DMX signal control transmission
EN 50170/VDE 0482-332-1-2/IEC 60332-1-2
REMARKS
Conform to RoHS directive
Conform to Low-Voltage Directive (LDV) 2014/35/EU
Conform to Low-Voltage Directive (LDV) 2014/35/EU

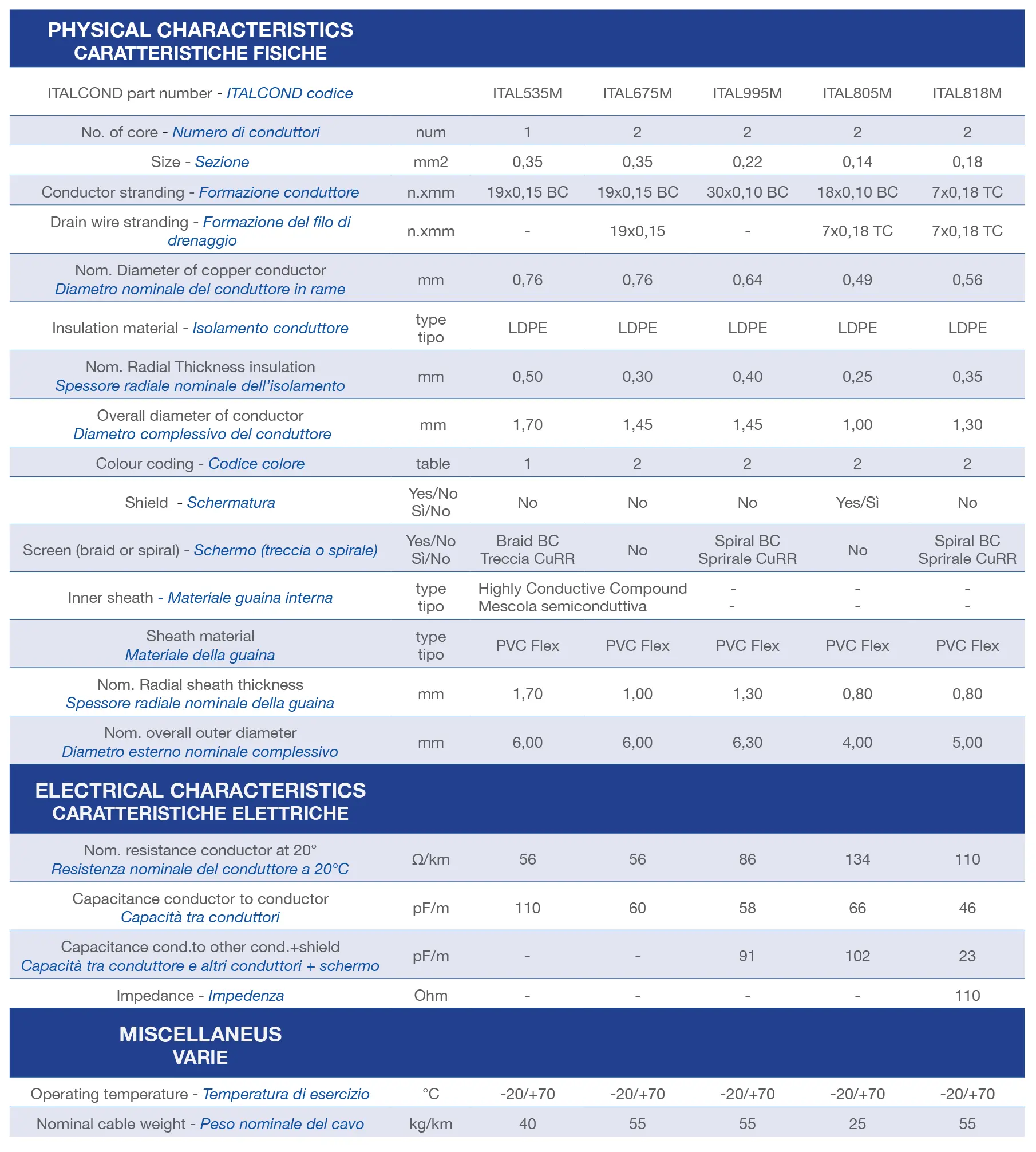

TECHNICAL FEATURES
Conductor
Flexible bare or tinned copper or OFC (Oxygen Free Copper)
Insulation
LDPE Polyethylene
Core identification
table(1) : clear
table(2) : clear, red
table(2) : clear, red
Shield
Aluminium/Polyester 100% coverage
Braid or Spiral shield
Tinned (TC) or bare copper (BC)
Inner sheath
Highly conductive compound
Sheath material
High-flex PVC Black, Red or Blue
CPR (DoP) – EU 305/11
NOT APPLICABLE
