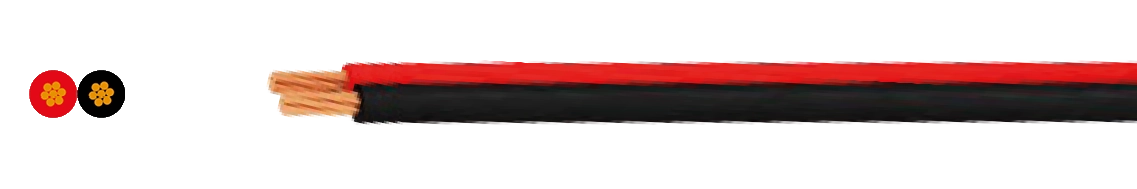

FIGURE 8 SPLIT-TWIN
APPLICATION
Figure 8 cable or often known as split-twin.For home audio systems and professional audio installations.
The split design allows for easy separation of the conductors, ideal for connecting speakers and audio equipment.
SPECIAL FEATURES
EN 60228
EN 60332-1-2
EN 50575 : 2014 + A1 : 2016
EN 60332-1-2
EN 50575 : 2014 + A1 : 2016
REMARKS
Conform to RoHS directive
Conform to Low-Voltage Directive (LDV) 2014/35/EU
Conform to Low-Voltage Directive (LDV) 2014/35/EU
TECHNICAL FEATURES
Operating temperature
-15° ÷ +70°
Rated voltage
300 V
Test voltage
1500 V
Conductor class
Bare or tin Cu Class 5 DIN VDE 0812 IEC 60228
Insulation
PVC (quality TI2)
Core identification
Black-Red
Min. bending radius
15 x cable Ø
CPR (DoP) – EU 305/11
SYSTEM 3
Eca
