TELEPHONE AND ALARM CABLES

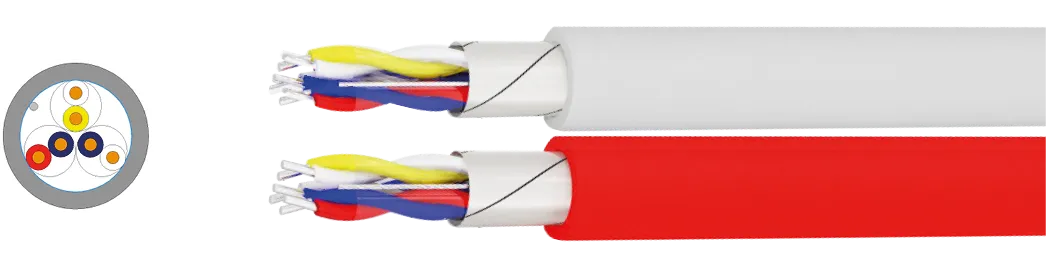

J-Y(St)Y J-H(St)H BMK
fire alarm cables
APPLICATION
Alarm cable with electrostatic shield for telecommunication.
IT-system and data signals.
Suitable for fixed laying in dry and humid rooms, on-wall and in-wall, outdoor use, no laying underground.
IT-system and data signals.
Suitable for fixed laying in dry and humid rooms, on-wall and in-wall, outdoor use, no laying underground.
SPECIAL FEATURES
Aluminium tape shiedlded
Pairs stranded in layers
Available: J-Y(St)Y BMK as fire alarm cable with red RAL3000 outer sheath
EN 50575 : 2014 + A1 : 2016
Pairs stranded in layers
Available: J-Y(St)Y BMK as fire alarm cable with red RAL3000 outer sheath
EN 50575 : 2014 + A1 : 2016
REMARKS
Conform to RoHS directive
Conform to Low-Voltage Directive (LDV) 2014/35/EU
Conform to Low-Voltage Directive (LDV) 2014/35/EU
TECHNICAL FEATURES
Operating temperature
-30°C ÷ +70°C
Rated voltage
300 V
Test voltage
800 V
Conductor Class
Bare Cu Class 1 Ø 0,6 mm (0,28 mm2), wire-Ø 0,8 mm (0,50 mm2)
Insulation
PVC (Quality TI2)
Core identification
DIN VDE 0815 different colours
Overall shield
Polyester tape, CuSn drain wire and Al/Pol. tape
Sheath material
PVC (Quality TM2) Grey RAL 7001 or Red RAL 3000
Min. bending radius
Fixed 7,5 x cable Ø / mobile use 10 x cable Ø
Other versions
J-H(St)H (LSZH) Low Smoke Zero Halogen
CPR (DoP) – EU 305/11
J-Y(St)Y
SYSTEM AVCP 1+
Cca
DOWNLOAD
SYSTEM 3
Dca
DOWNLOAD
SYSTEM 3
Eca
DOWNLOAD
SYSTEM 4
Fca
DOWNLOAD
J-H(St)H
SYSTEM AVCP 1+
B2ca
DOWNLOAD
SYSTEM AVCP 1+
Cca
DOWNLOAD
SYSTEM 3
Dca
DOWNLOAD
SYSTEM 3
Eca
DOWNLOAD
SYSTEM 4
Fca
DOWNLOAD
