TELEPHONE AND ALARM CABLES

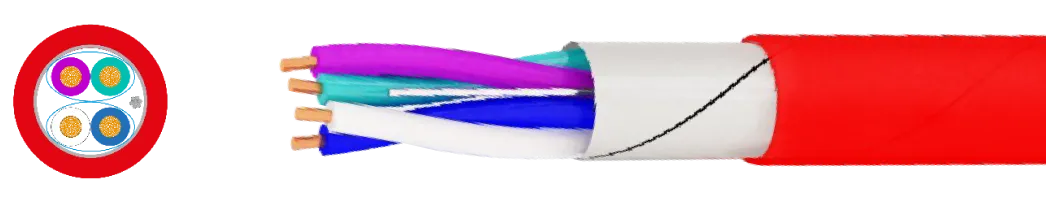

TVVF F2 TWISTED PAIR OVERALL SHIELDED
shielded telecommunication cables, for fixed indoor installations
APPLICATION
Telecommunication cable for indoor systems, insulated with a special flame retardant PVC compound or low toxic smoke Halogen-free material, in accordance with EN-IEC flame and smoke standards.
SPECIAL FEATURES
SVV F2 PVC
IEC 60332-1-2 : Flame retardant
IEC 60332-3-24 : Circuit integrity
EN 50575 : 2014 + A1 : 2016
IEC 60332-1-2 : Flame retardant
IEC 60332-3-24 : Circuit integrity
EN 50575 : 2014 + A1 : 2016
TGGF LSZH:
IEC 60332-1-2 : Flame retardant
IEC 60332-3-24 : Circuit integrity
EN 50267-2-3 : Acidity of gases
EN 61034-2 : Smoke density
EN 50575 : 2014 + A1 : 2016
REMARKS
Conform to RoHS directive
Conform to Low-Voltage Directive (LDV) 2014/35/EU
Conform to Low-Voltage Directive (LDV) 2014/35/EU
TECHNICAL FEATURES
Operating temperature
-5°C ÷ +70°C
Rated voltage
150V
Test voltage
1000V
Conductor class
Bare Cu Class 1 DIN VDE 0812 IEC 60228
Insulation
PVC (quality TI2)
Core colours identification
White, Blue, Turquoise , Violet
Shield
Polyester tape, drain wire TC, Alum./Polyester tape
Sheath material
PVC (quality TM2) Red RAL 3000
Min. Bending radius
10 x Ø Fixed installation
Other versions
TGGF (LSZH) Low Smoke Zero Halogen
CPR (DoP) – EU 305/11
TVVF F2 PVC
SYSTEM AVCP 1+
Cca
DOWNLOAD
SYSTEM 3
Dca
DOWNLOAD
SYSTEM 3
Eca
DOWNLOAD
SYSTEM 4
Fca
DOWNLOAD
TGGF LSZH
SYSTEM AVCP 1+
B2ca
DOWNLOAD
SYSTEM AVCP 1+
Cca
DOWNLOAD
SYSTEM 3
Dca
DOWNLOAD
SYSTEM 3
Eca
DOWNLOAD
SYSTEM 4
Fca
DOWNLOAD
